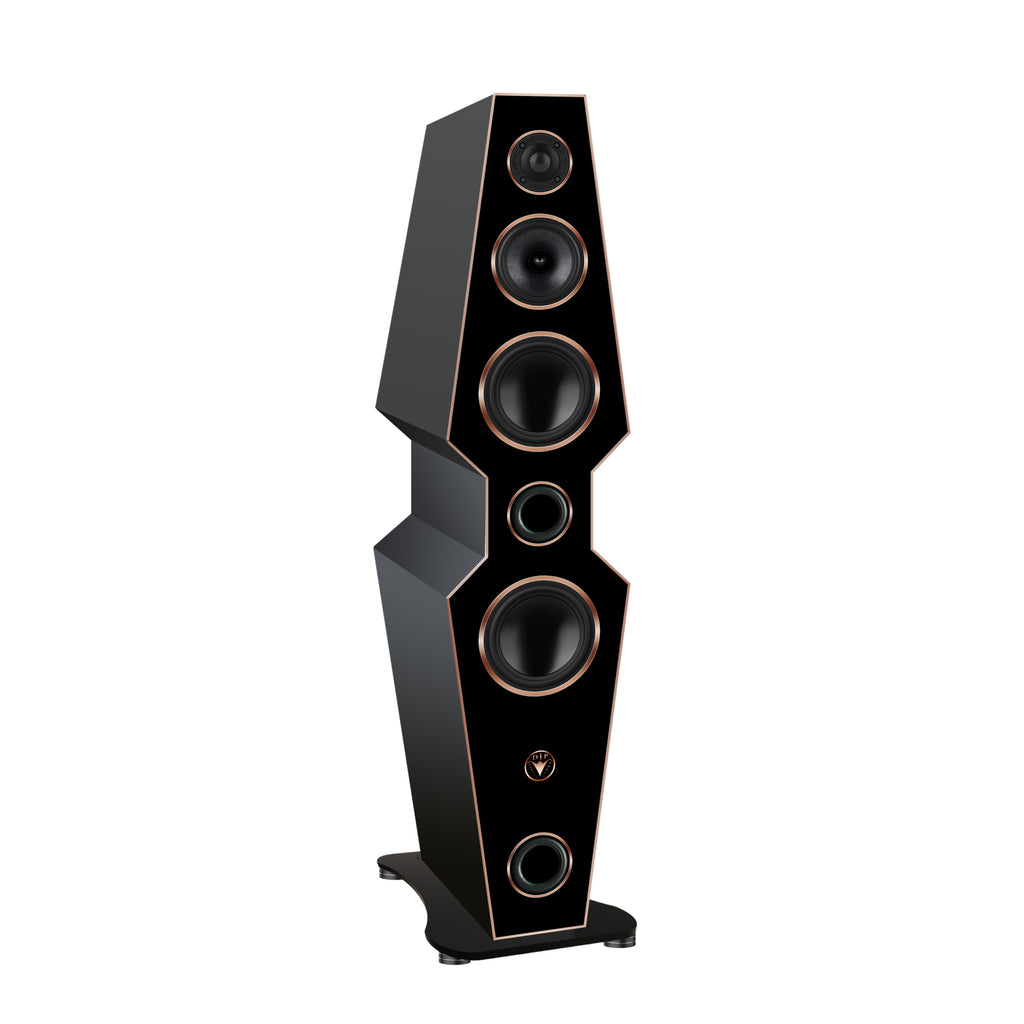

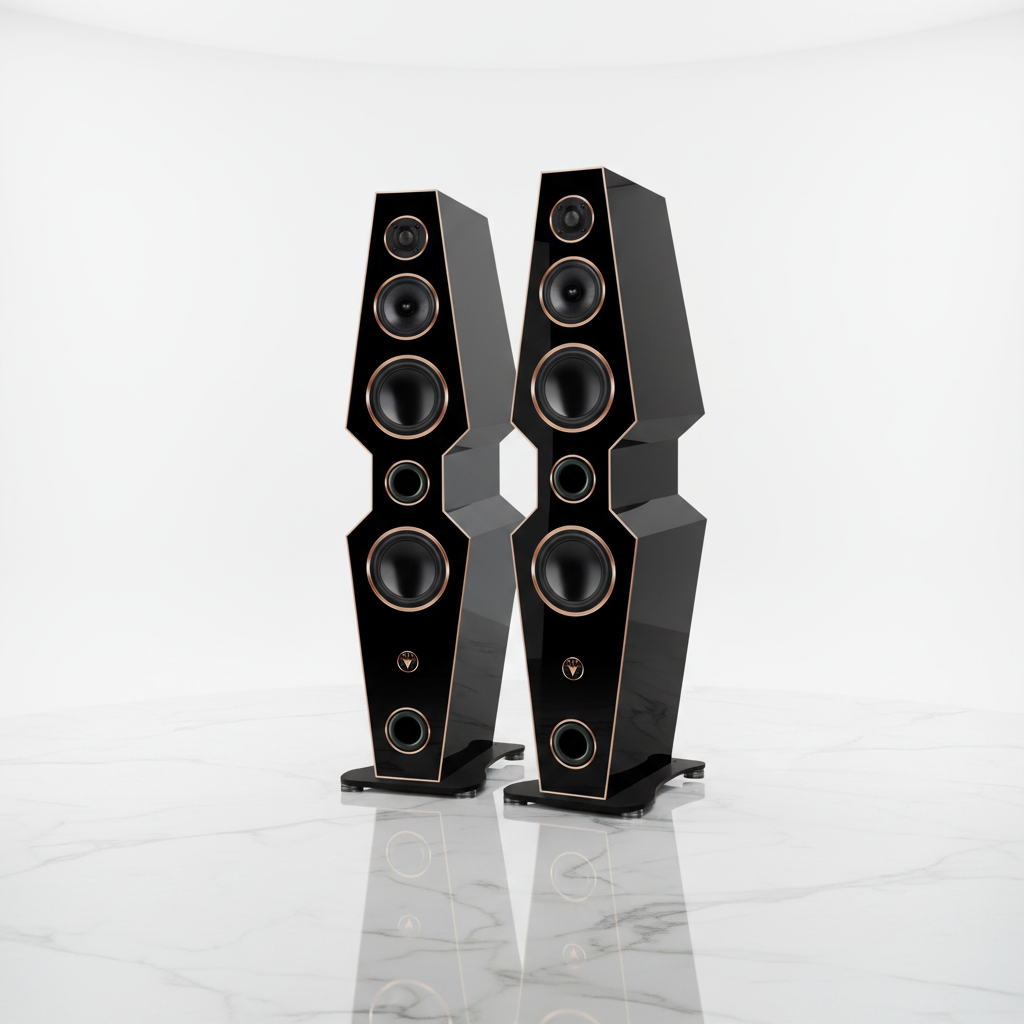

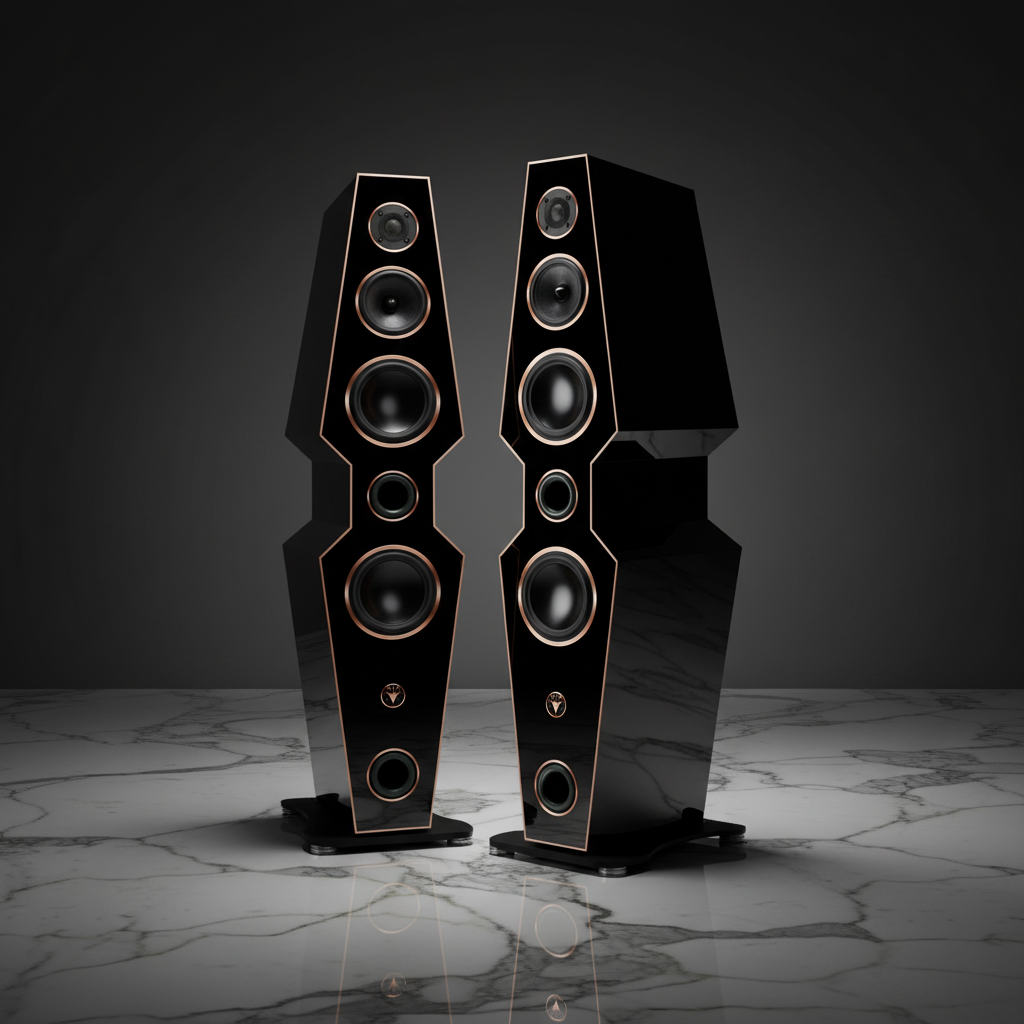

DJP Design Speakers

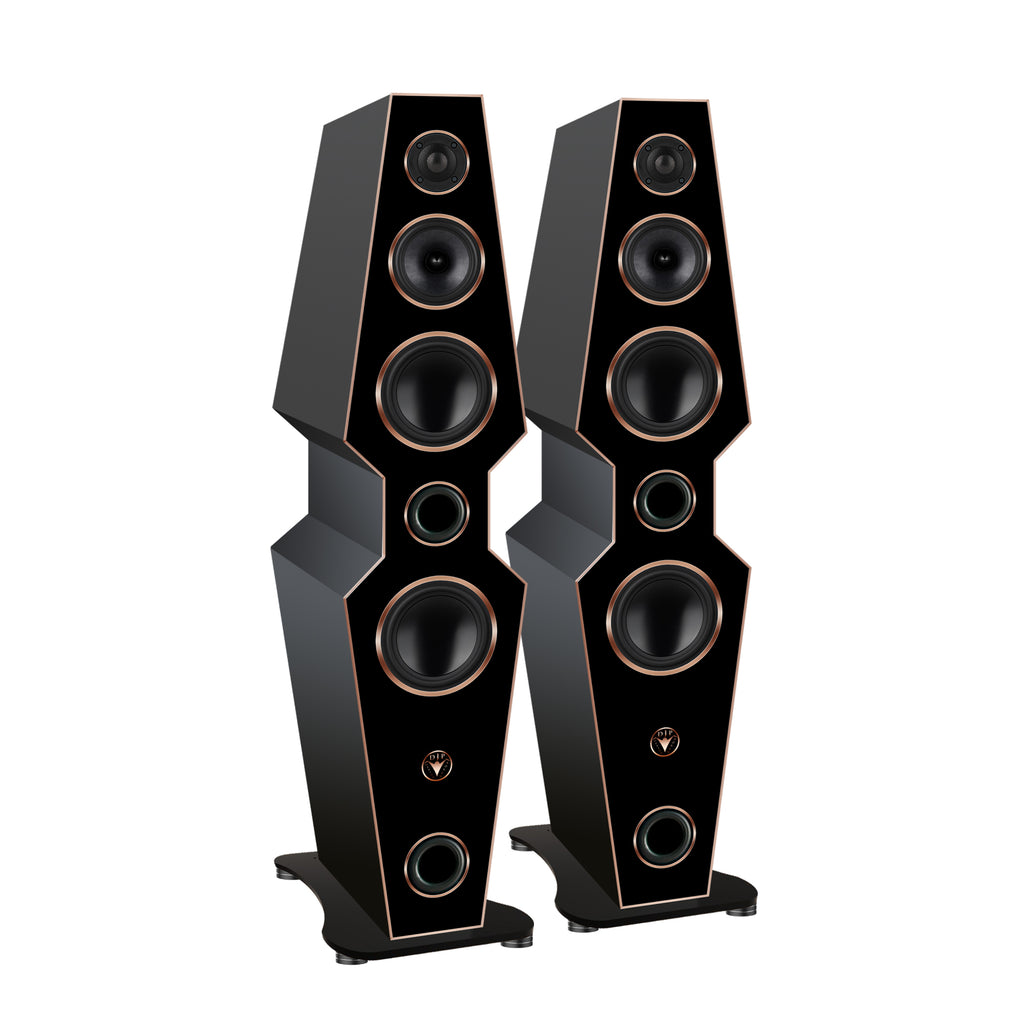

Hi-Fi Floor-standing Speakers
Diamond Edition
3-Way System with Dayton Audio Drivers
Made in Germany
Unique Elegant Design

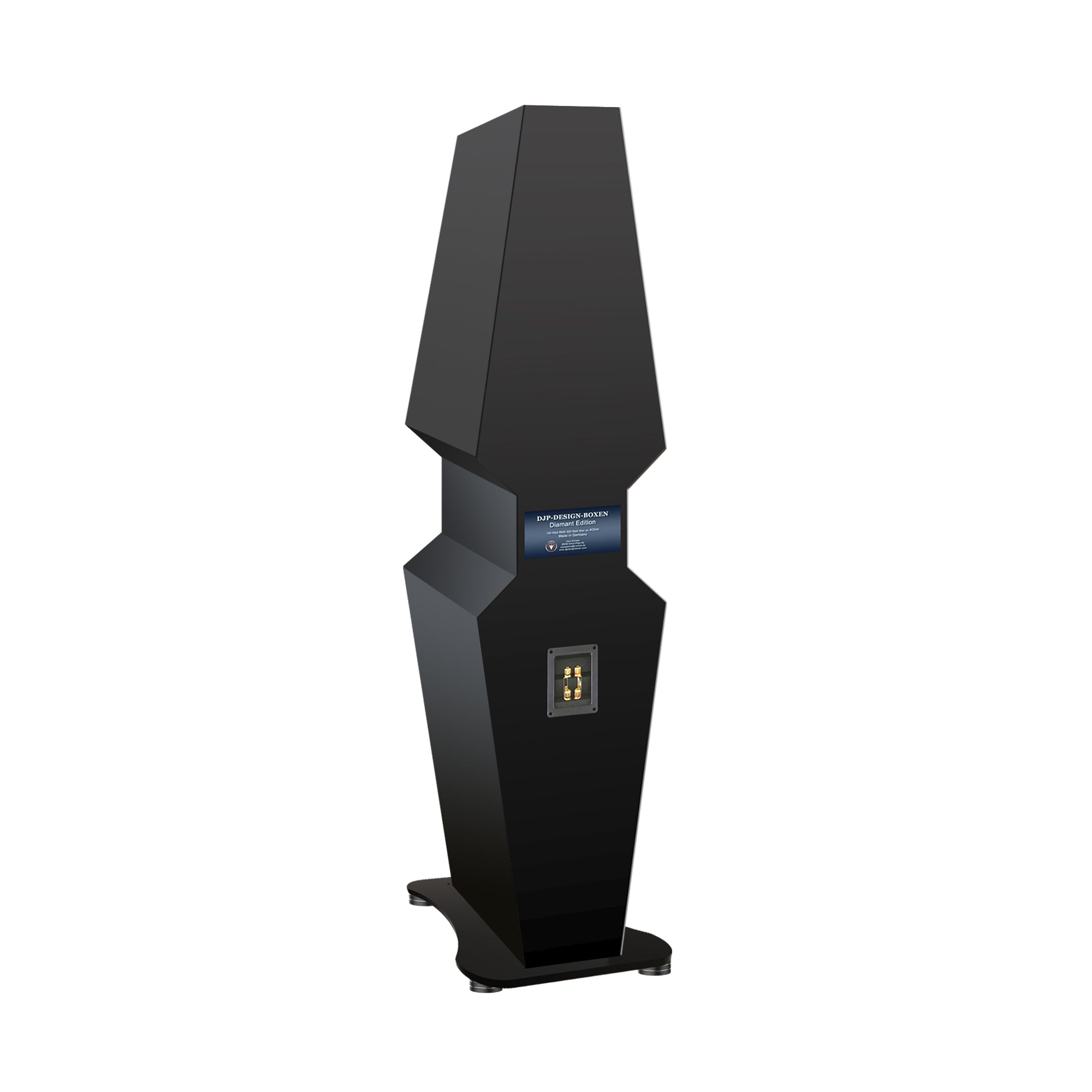

Bi-Wiring Connection Terminal
High-Gloss Speaker Front

1 pair 3-4 weeks delivery time!

Normal connection 3-way system with a stereo amplifier!
You can connect the speakers to the top or bottom terminal.
Power 150 Watts RMS Max 300 Watts at 8 Ohms per speaker with normal connection with 2-channel amplifier!

Bi-wiring connection for multi-channel amplifiers or 2 stereo amplifiers.
Always remove both connecting bridges beforehand!
Upper connection for mid-high range 100 Watts RMS Max 200 Watts at 8 Ohms
Lower connection for subwoofer 120 Watts RMS Max 200 Watts at 8 Ohms

Frequency range: 35-24000 Hertz
Average sound pressure 90 db
Bass reflex enclosure passive
Speaker volume approx. 78 liters
Dimensions: Height 114cm Width 24cm Depth 30cm
Weight: 24 kg

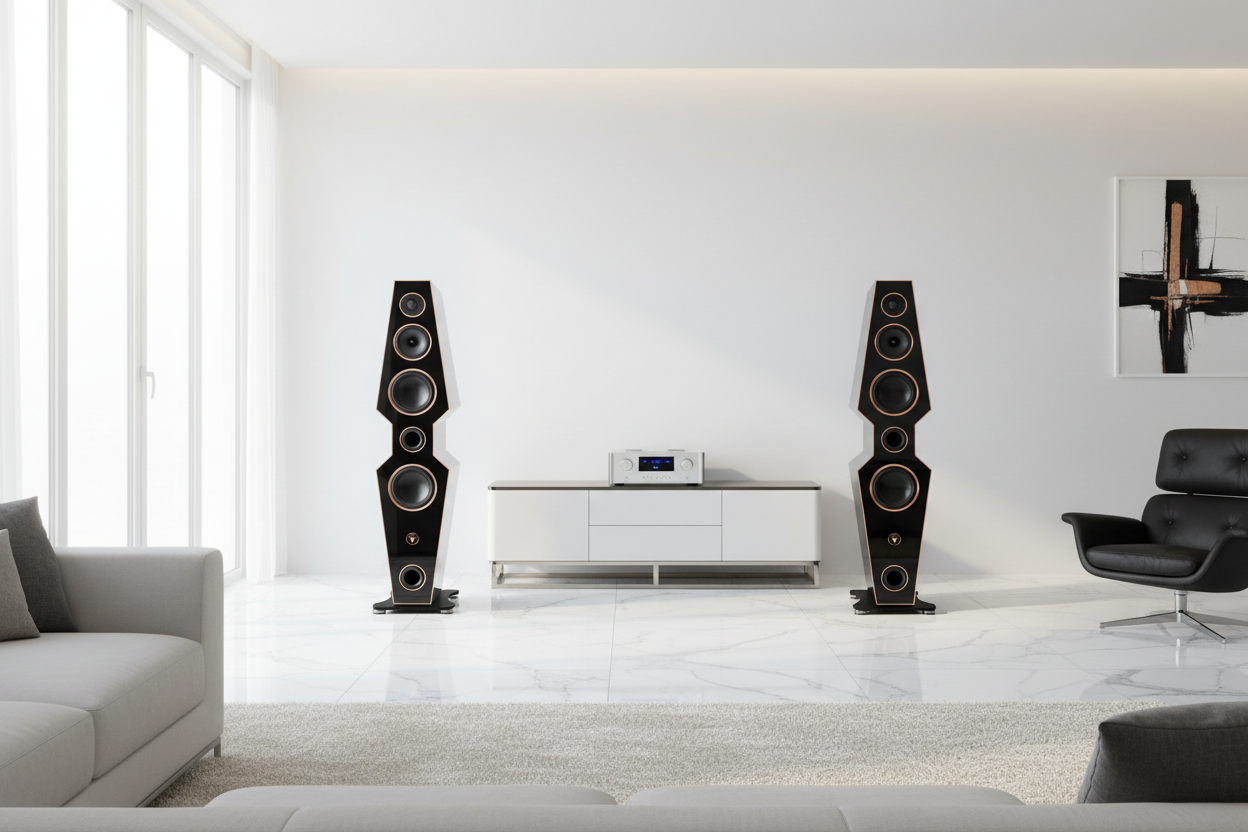

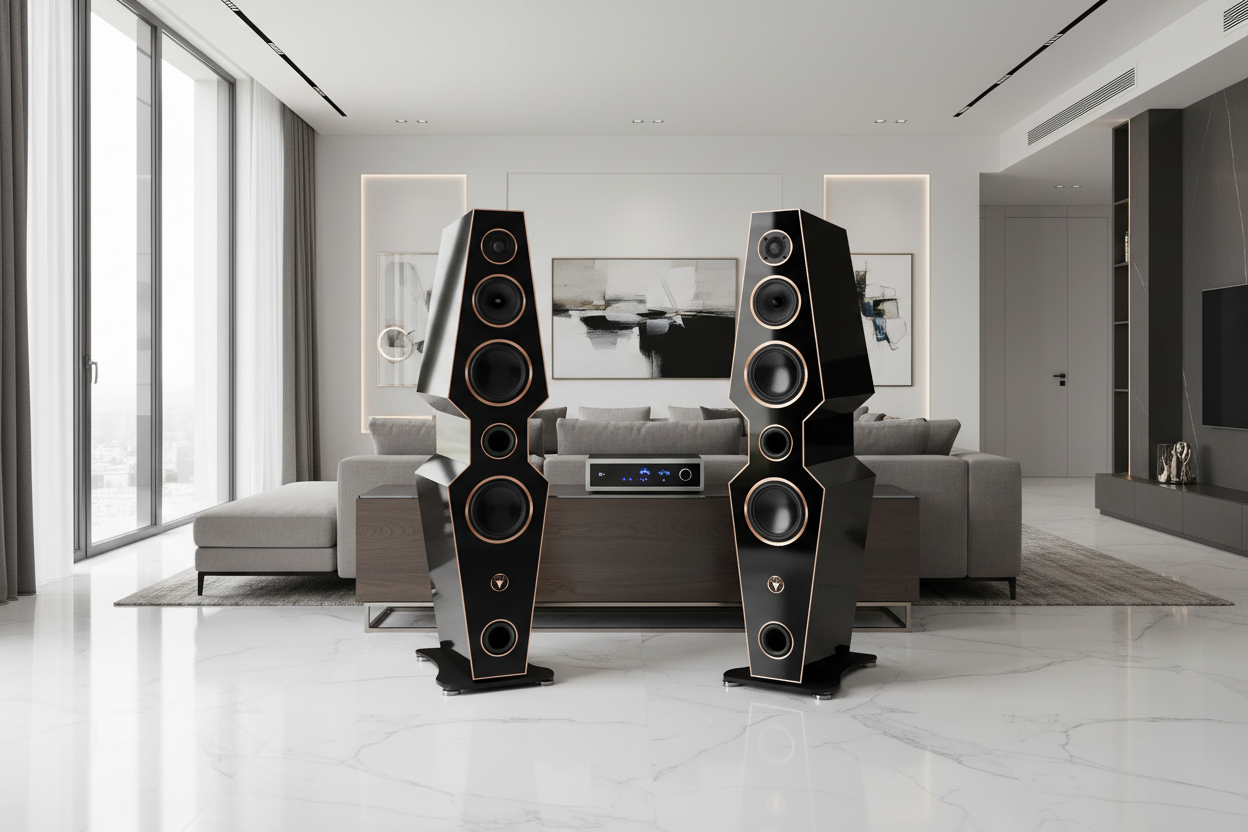

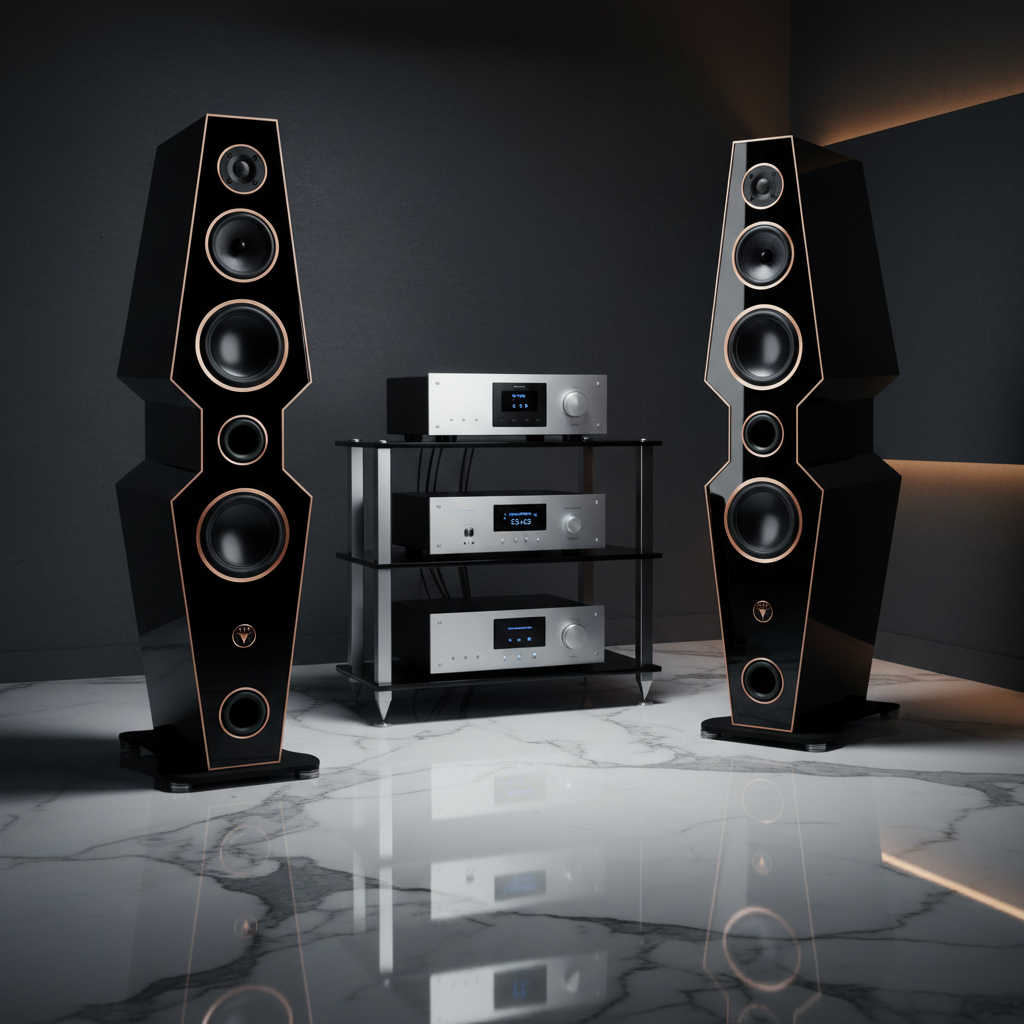

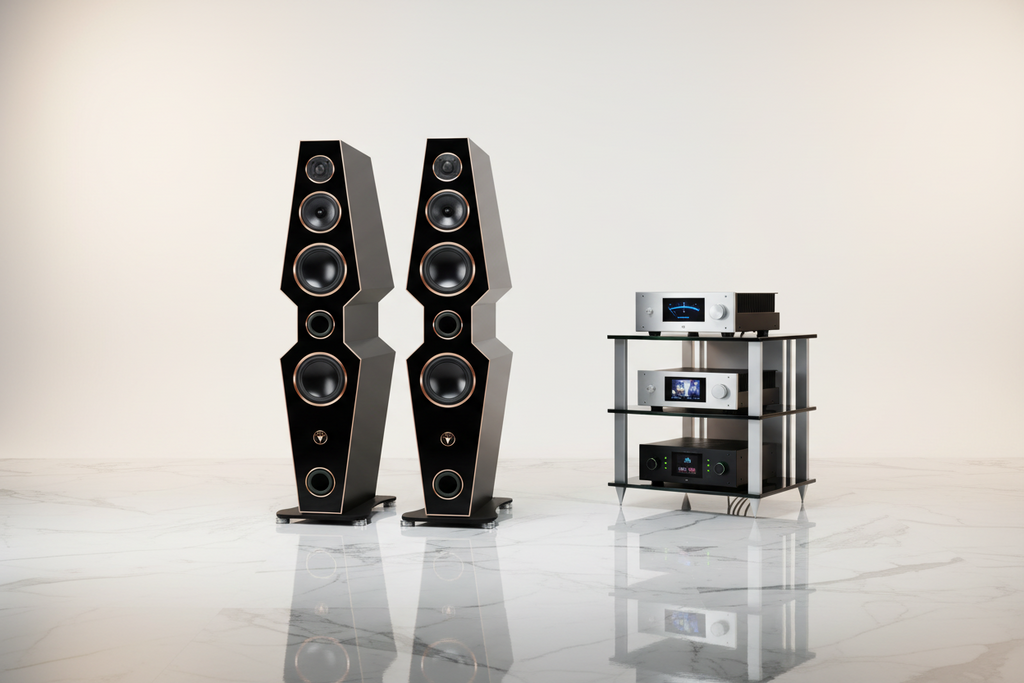

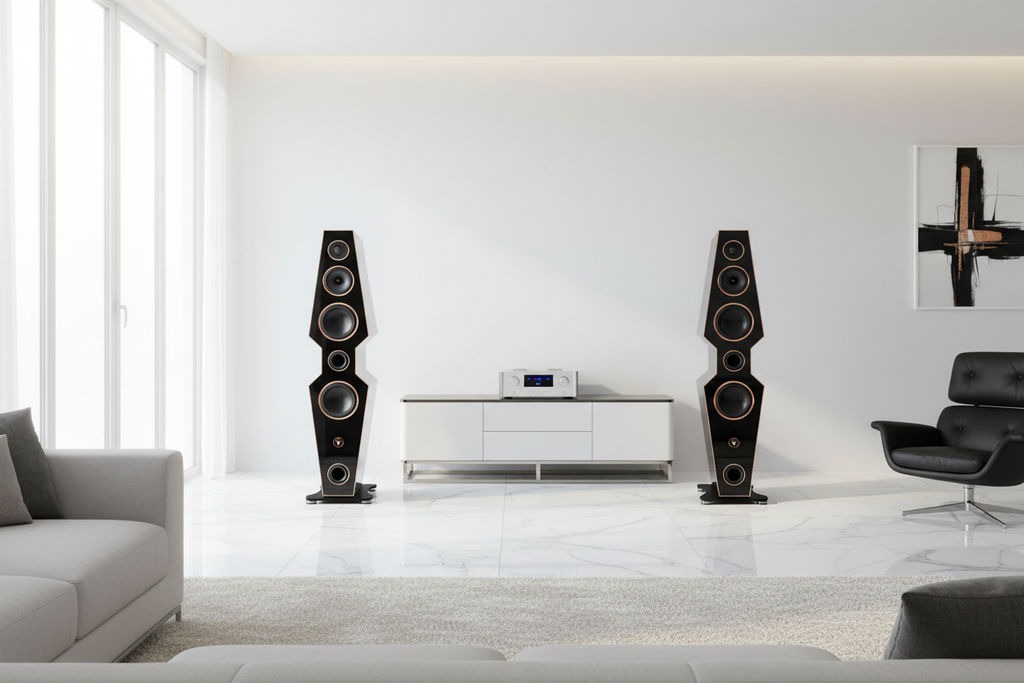

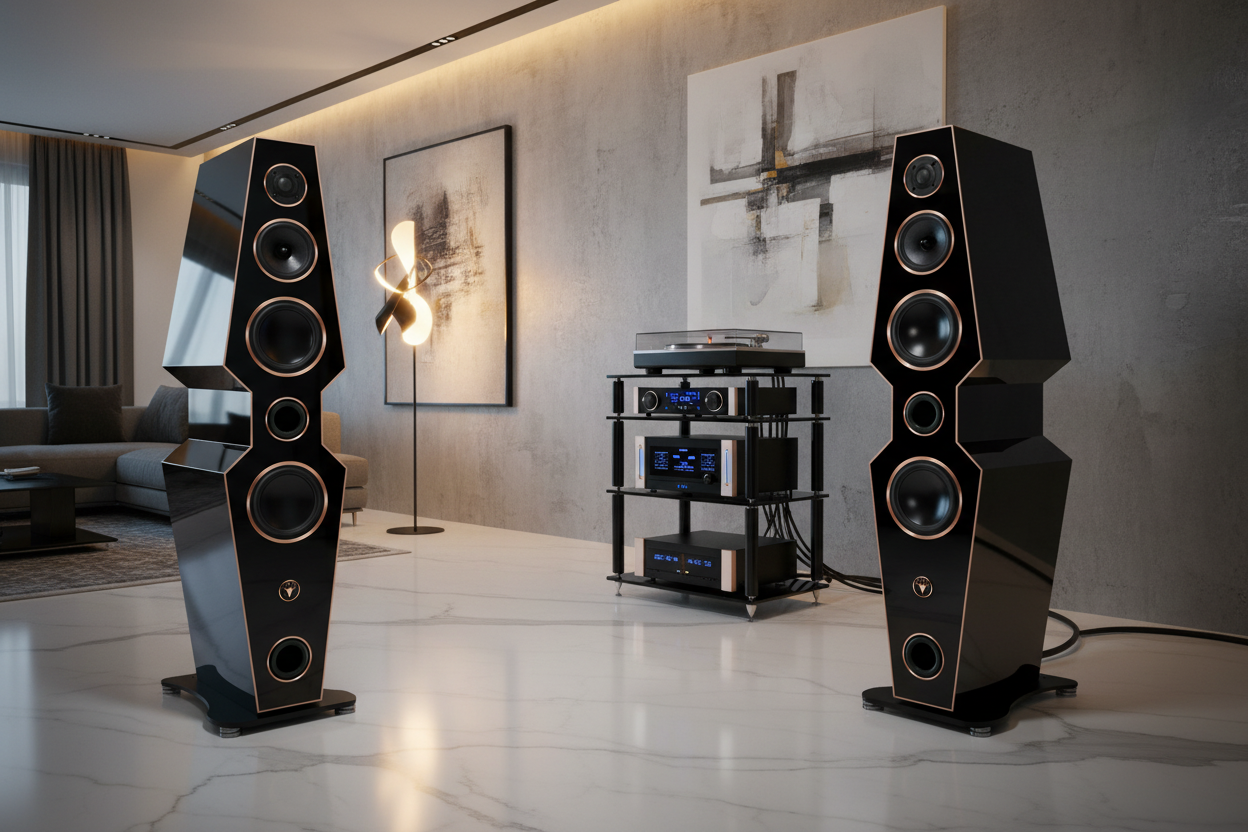

The Diamond Edition are floor-standing speakers with high-quality speaker drivers and a slim, unique design! With their powerful Dayton Audio speakers and a power of 150 watts RMS per speaker, they offer plenty of power even for higher volumes and are a real visual highlight in any living room or party room! Thanks to the very high-resolution highs, mids and soft basses, they can be used universally, whether for parties, a stereo system or as TV speakers. They have a bi-wiring connection terminal with which you can control the two 6.5 inch bass speakers (lower connection) and the mid and high-frequency range (upper connection) separately. To do this, you only have to remove the two connecting bridges on the terminal (absolutely necessary if you want to connect a multi-channel amplifier or 2 stereo amplifiers!!!)! This allows for perfect tuning between the bass and mid-high range.
If you want to operate the speakers normally with a 2-channel stereo amplifier in a 3-way system, it doesn't matter whether you use the upper or lower connection.

Technical data:

Speakers:
- 2x Dayton Audio Bass 6.5 inches (170mm)
-Rated power 60 W RMS
-Maximum power 120 W
-Frequency range 35-4000 Hertz
-Sensitivity 90dB
-Impedance 8Ω

-1x Dayton Audio Bass-Midrange 5.25 inches (135mm)
-Frequency response: 60 - 9000Hz
-Nominal impedance: 8 Ohm
-Sensitivity : 89 dB
-Rated power handling: 50 Watts RMS
-Maximum power handling: 100 Watts

-1x Tweeter Dome 3" (72mm)
-Frequency response: 4 kHz - 24 kHz
-Nominal impedance: 8 Ohm
-Sensitivity : 92 dB
-Rated power handling: 60 Watts RMS
-Maximum power handling: 120 Watts

Frequency range: 35-24000 Hertz
The crossover frequency is 500 Hz and 6000 Hz at 12 db slope.
