  Hi-Fi Floorstanding Loudspeakers

  DJP Reference Series

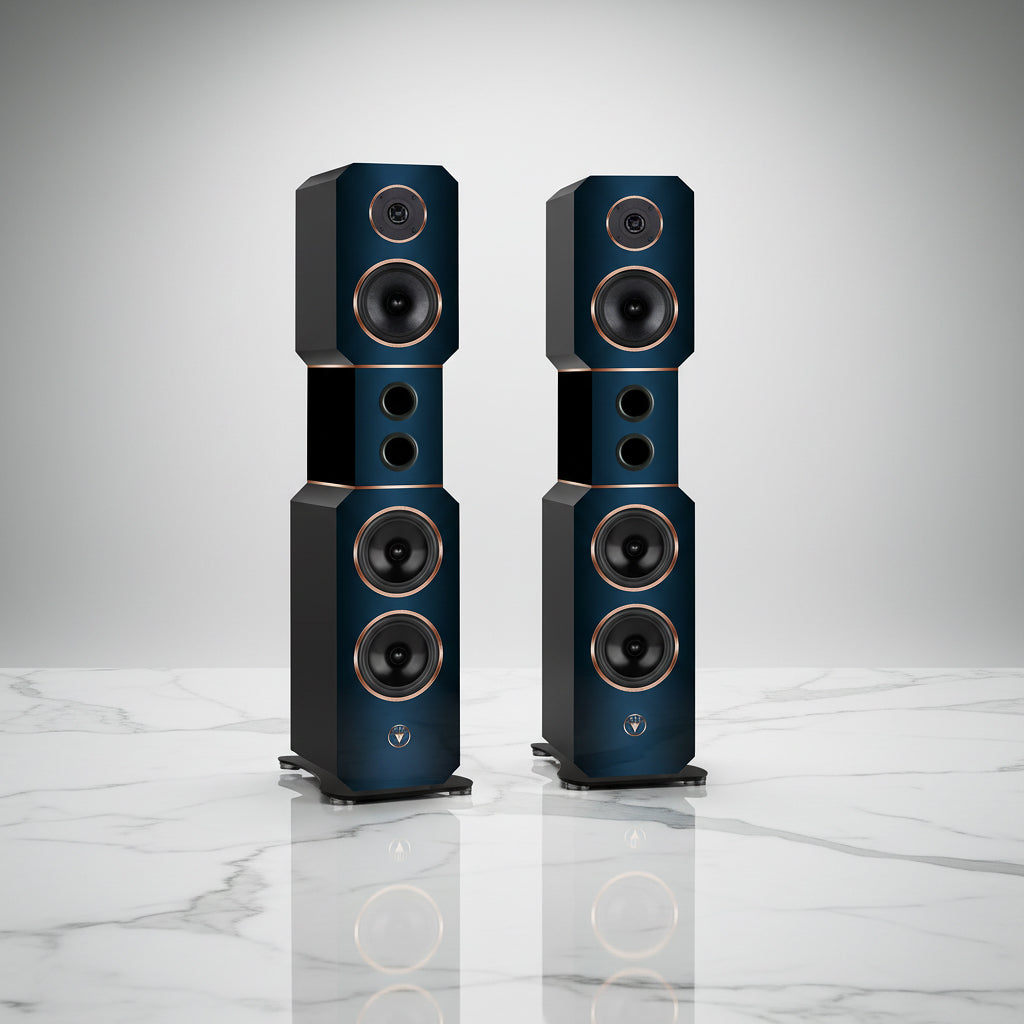

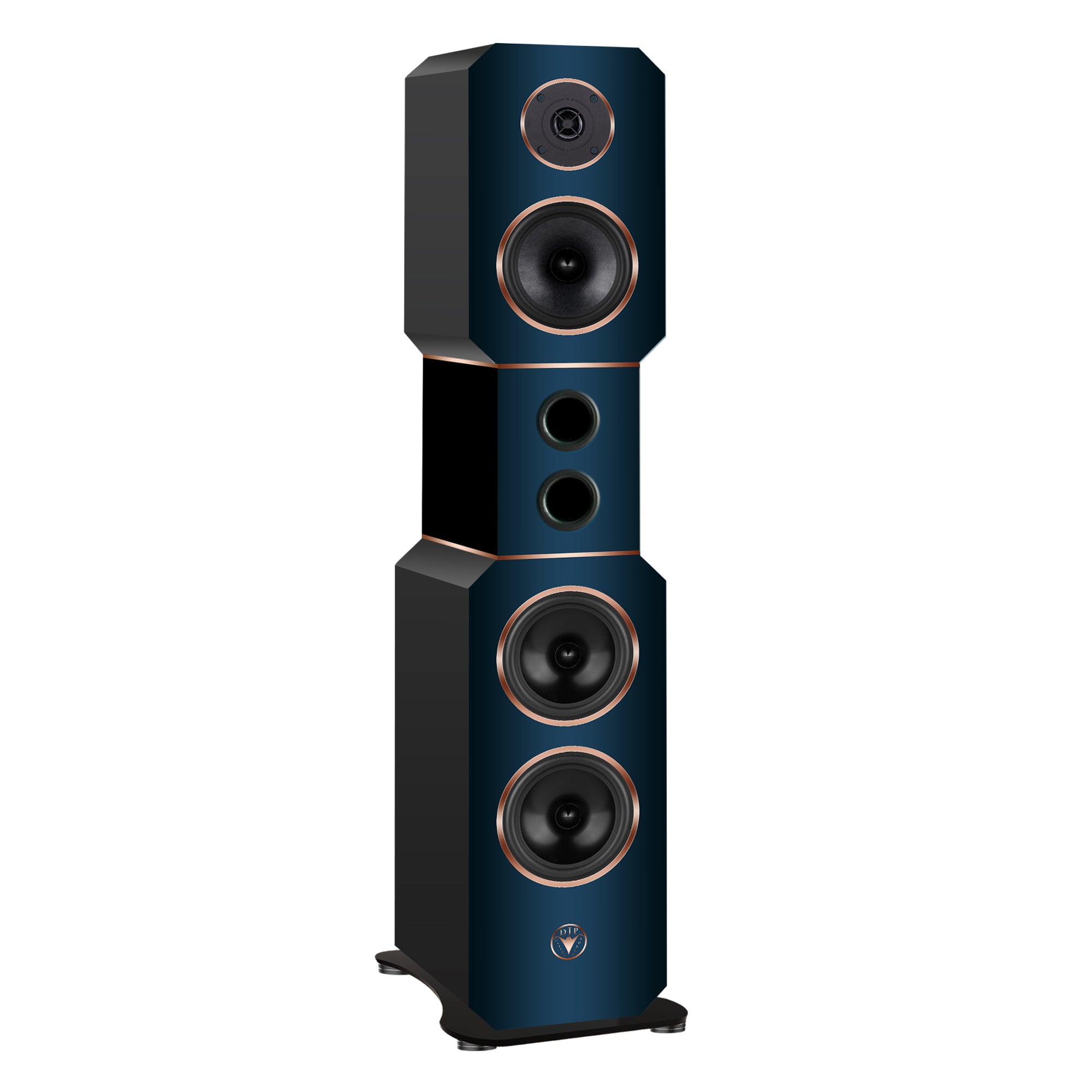

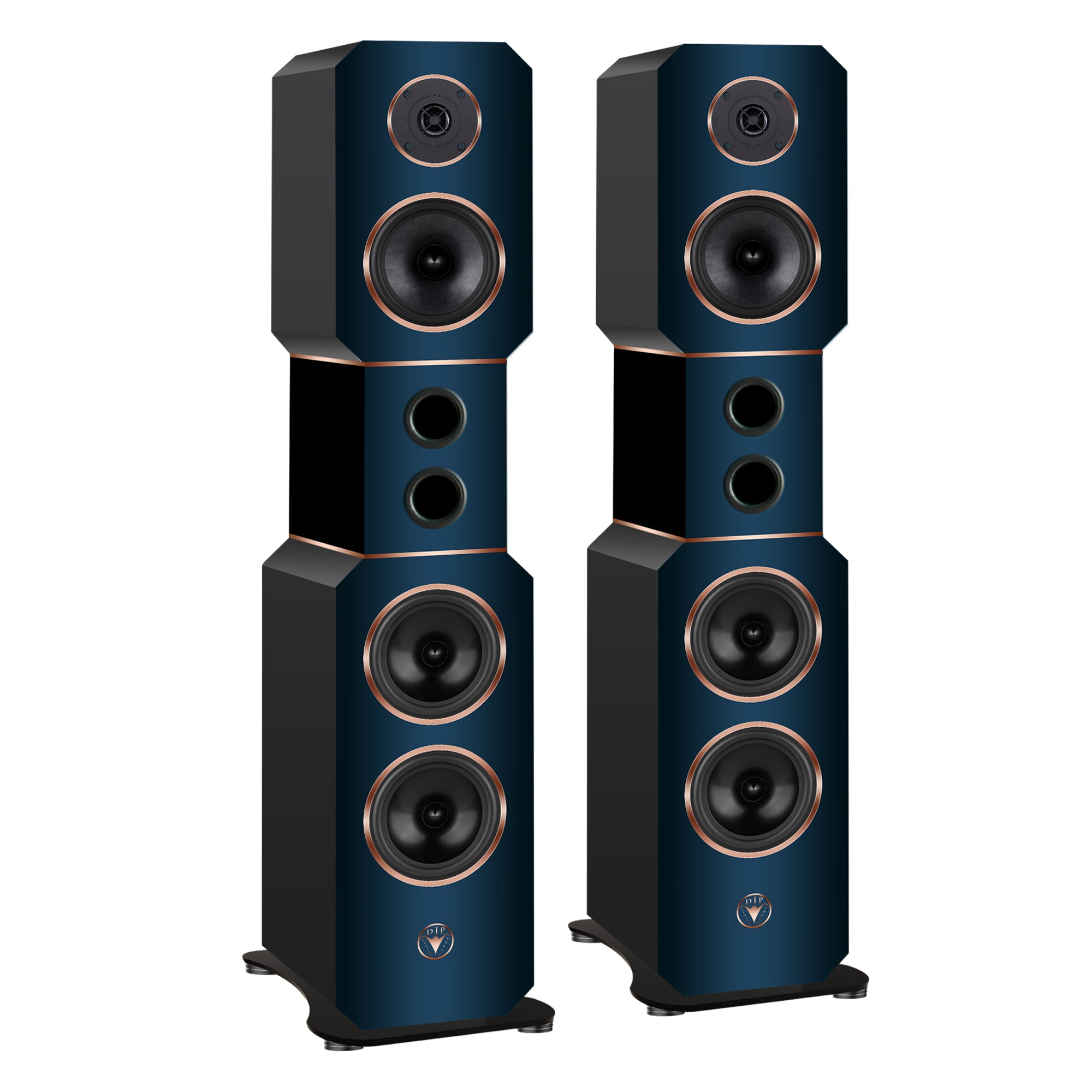

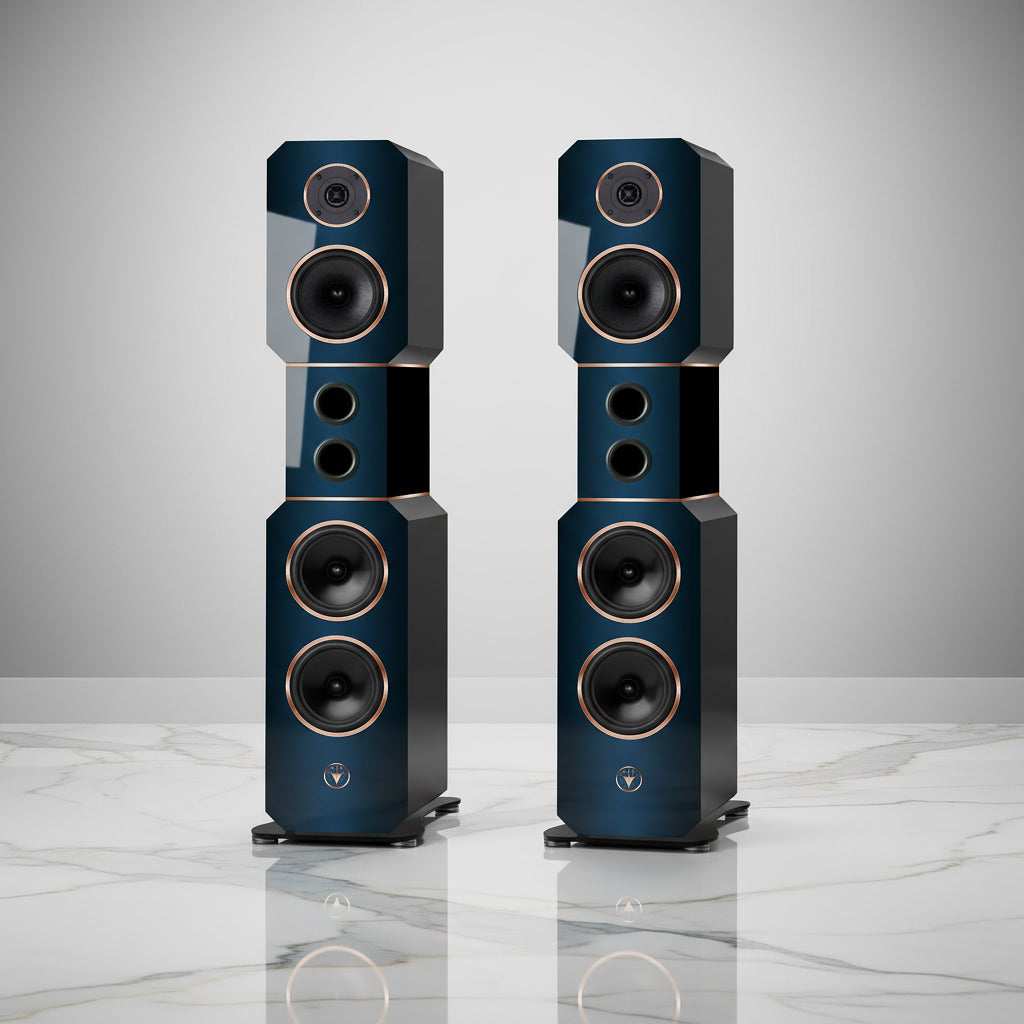

  Obsession Blue Edition

  3-Way System with High-Quality Dayton Audio Drivers

  Made in Germany

  Unique Elegant Design

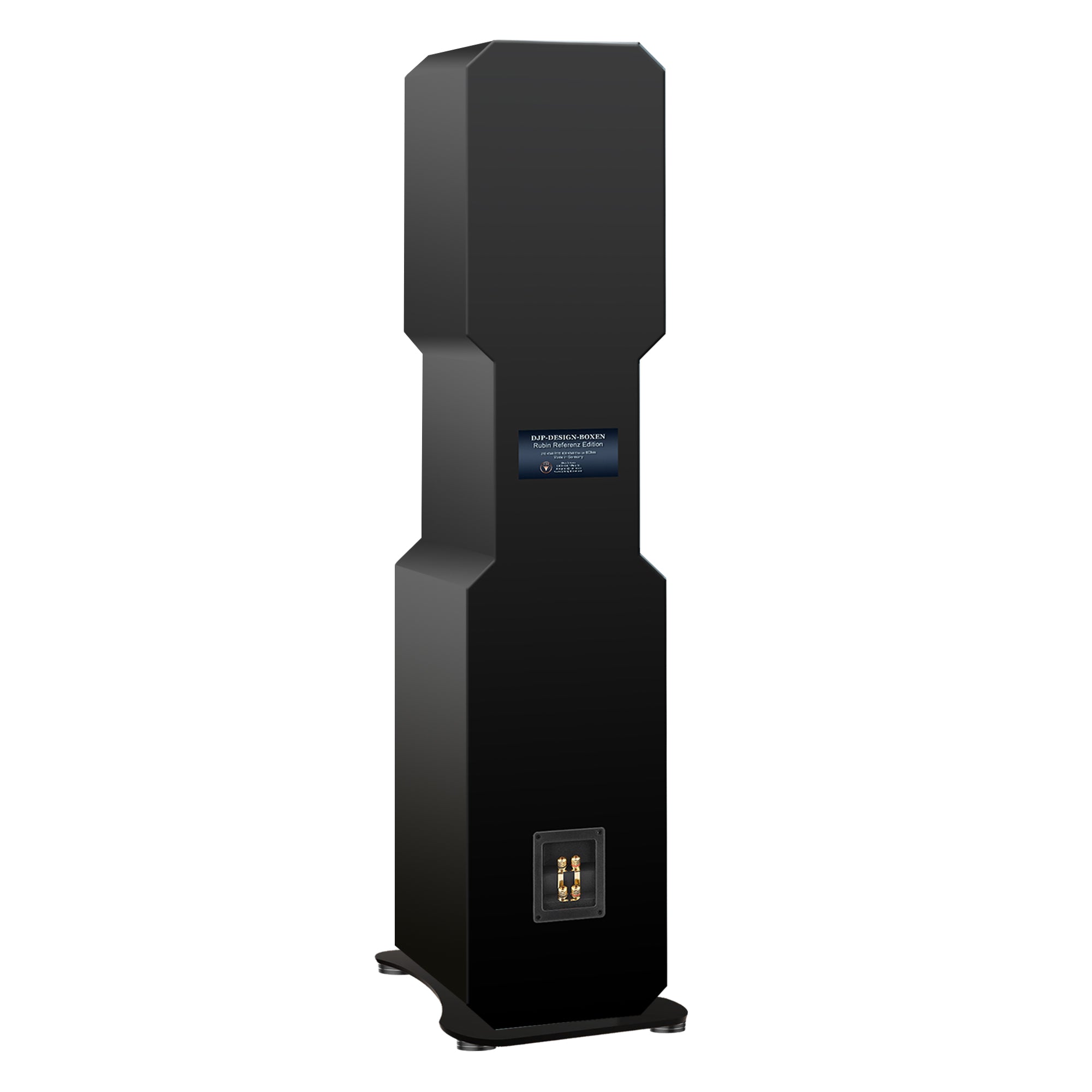

  Bi-Wiring Connection Terminal

  High-Gloss Speaker Front and Side Panels

1 Pair Available Immediately!

Normal connection 3-way system with a stereo amplifier!
You can connect the speakers to either the top or bottom terminal.
Power 180 Watts RMS Max 350 Watts at 8 Ohms per speaker with normal connection using a 2-channel amplifier!

Bi-wiring connection for multi-channel amplifiers or 2 stereo amplifiers.
It is essential to remove both connection bridges beforehand!
Upper connection for mid-high range 100 Watts RMS Max 200 Watts at 8 Ohms
Lower connection for subwoofer 100 Watts RMS Max 200 Watts at 8 Ohms

Technical Data:

• Frequency range: 25-24000 Hertz
  Average sound pressure 90 dB
  Bass reflex enclosure, passive
  Enclosure volume approx. 84 liters
  Dimensions: Height 114cm, Width 22cm, Depth 30cm
  Weight: 28 kg

Description:

The DJP Reference Series are high-end floorstanding speakers with high-quality speaker drivers and a slim, elegant design! With their powerful Dayton Audio speakers and an output of 180 Watts RMS per speaker, they offer plenty of power even for higher volumes and are a real visual highlight in any living room or party room! Thanks to the very high-resolution highs, mids, and soft bass, they can be used universally, whether for parties, stereo systems, or as TV speakers. They feature a bi-wiring connection terminal that allows separate control of the two 6.5-inch woofer speakers (lower connection) and the mid and high-frequency range (upper connection). To do this, you only need to remove the two connection bridges on the terminal (absolutely necessary if you want to connect a multi-channel amplifier or 2 stereo amplifiers)! This enables perfect tuning between the bass and mid-high range and provides an excellent sound experience.
If you want to operate the speakers normally with a 2-channel stereo amplifier in a 3-way system, it does not matter whether you use the upper or lower connection.

Speaker Drivers:

• - 2x Dayton Audio Woofer 6.5 inches (170mm)
  -Rated power 50 W RMS
  -Maximum power 100 W
  -Frequency range 25-4000 Hertz
  -Sensitivity 92dB
  -Impedance 8Ω


• -1x Dayton Audio Mid-Woofer 6.5 inches (165mm)
  -Frequency response: 60 - 8000Hz
  -Nominal impedance: 8 Ohm
  -Sensitivity: 92 dB
  -Rated power handling: 50 Watts RMS
  -Maximum power handling: 100 Watts


• -1x Dayton Audio Tweeter Dome 3.5" (96mm)
  -Frequency response: 4 kHz - 24 kHz
  -Nominal impedance: 8 Ohm
  -Sensitivity: 94 dB
  -Rated power handling: 70 Watts RMS
  -Maximum power handling: 140 Watts

Powerful crossover with high-quality components
Frequency range: 25-24000 Hertz
The crossover frequency is 500 Hz and 4000 Hz with a 12 dB slope.

Auditioning and self-pickup possible at any time!

If you have any questions about our speakers, please feel free to contact us at any time via our contact form! We are happy to help you!
