DJP Design Speakers
Hi-Fi Floor-Standing Loudspeakers

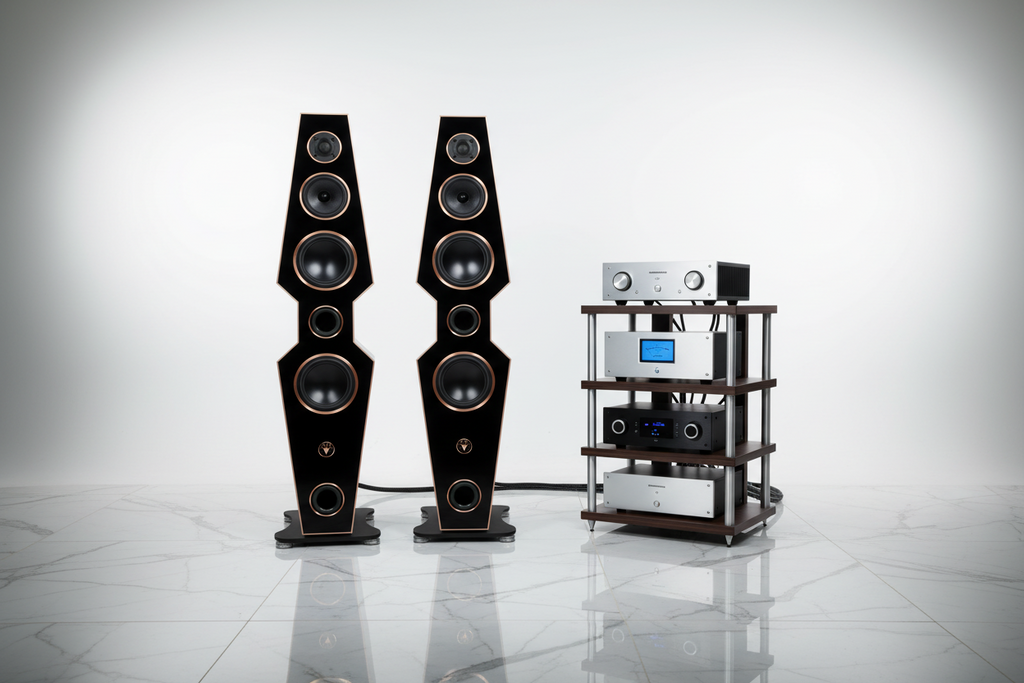

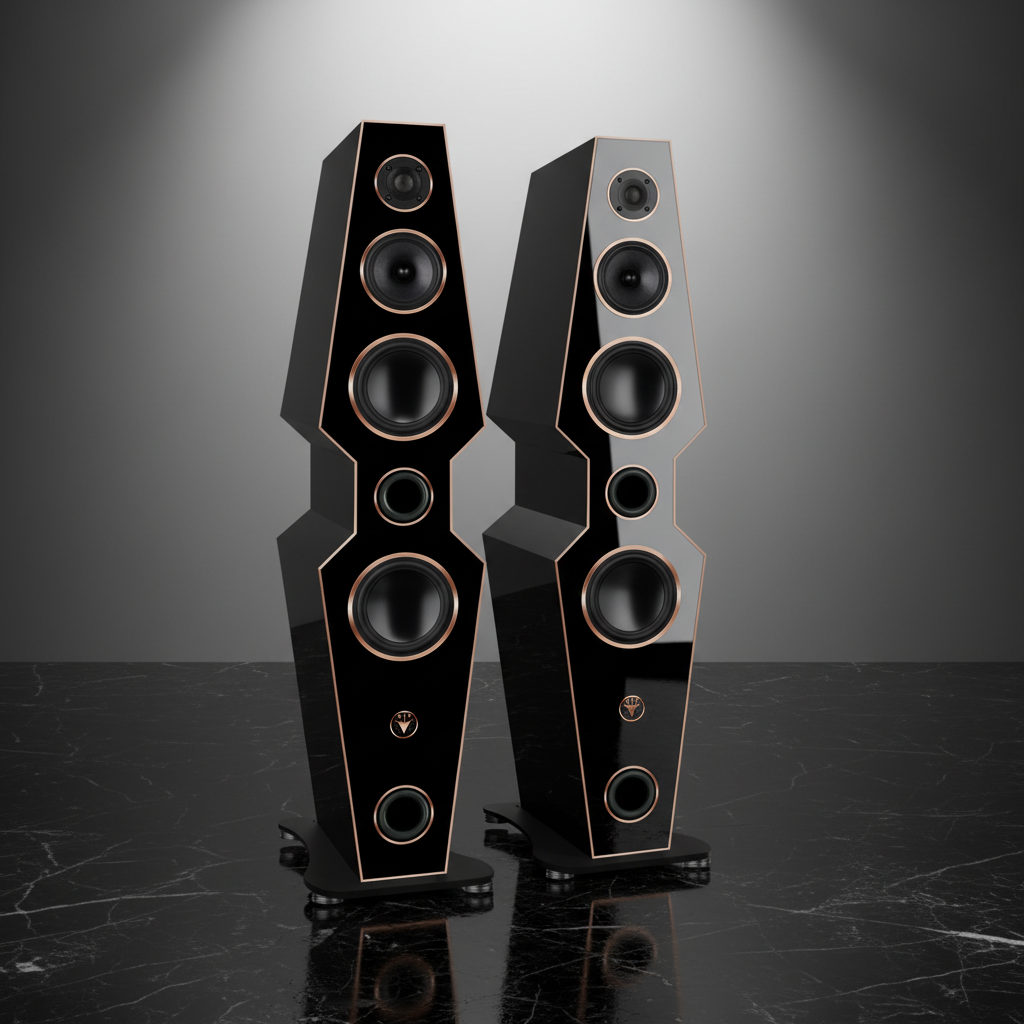

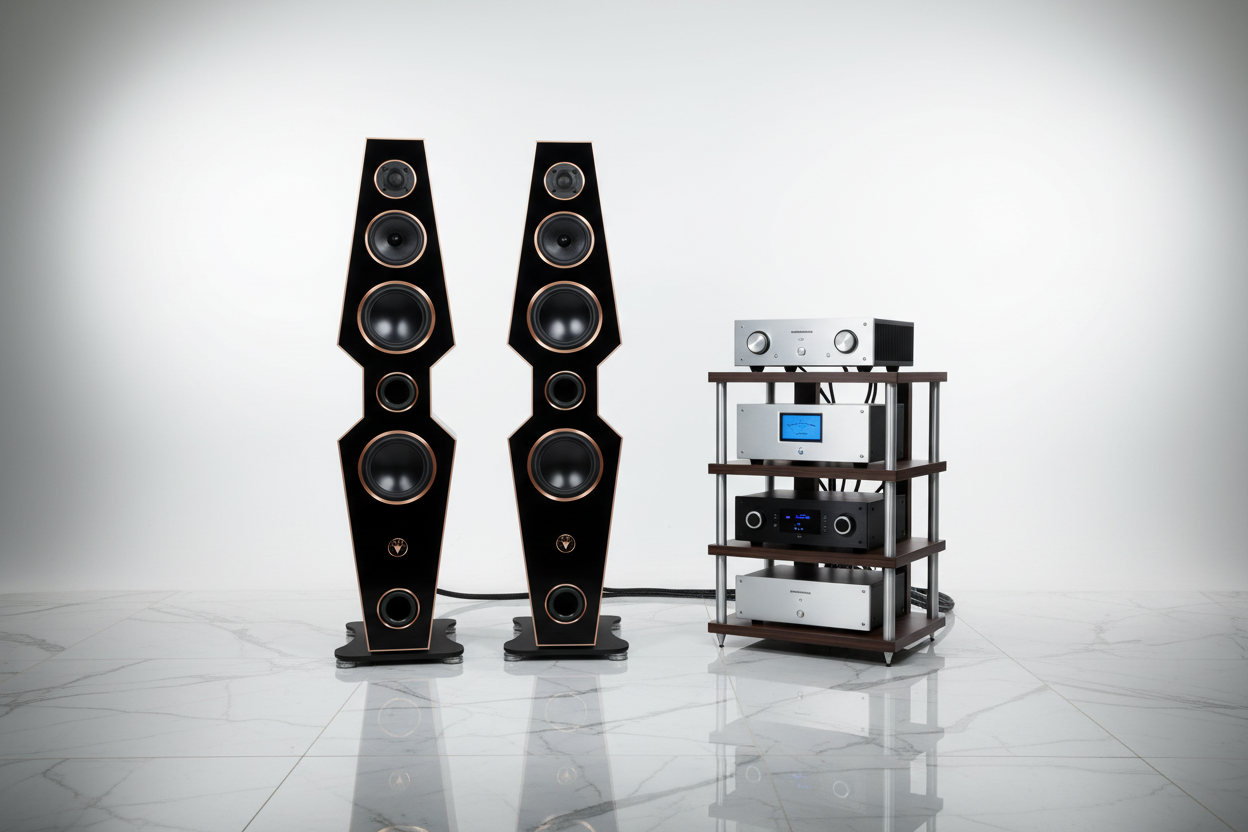

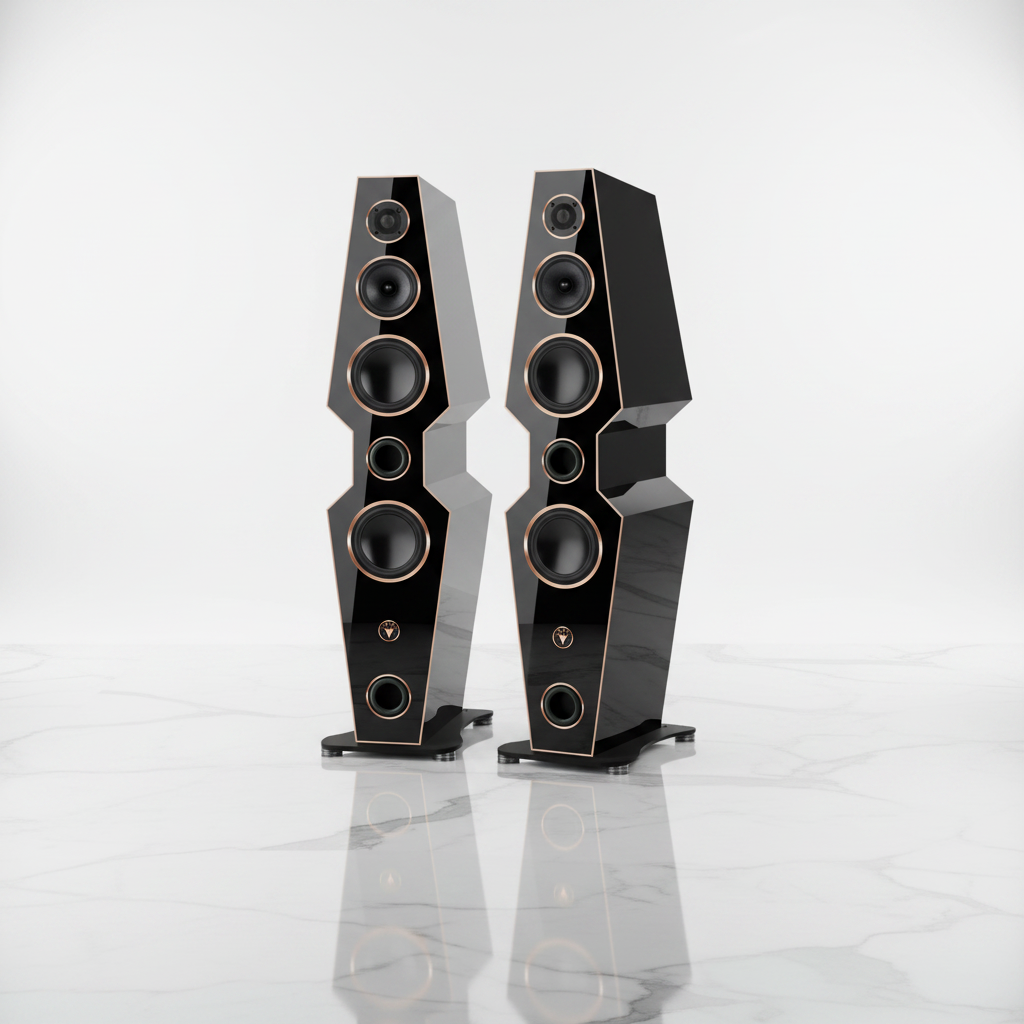

Diamond Edition
3-Way System with Dayton Audio Drivers
Made in Germany
Unique Elegant Design
Bi-Wiring Connection Terminal
High-Gloss Speaker Front

1 Pair 3-4 Weeks Delivery Time!

Normal connection 3-way system with a stereo amplifier!
You can connect the speakers to the top or bottom terminal.
Power 150 Watts RMS Max 300 Watts at 8Ohm per speaker with normal connection with 2-channel amplifier!

Bi-Wiring connection for multi-channel amplifiers or 2 stereo amplifiers.
It is essential to remove both connection bridges beforehand!
Upper connection for mid-high frequency range 100 Watts RMS Max 200 Watts at 8 Ohm
Lower connection for subwoofer 120 Watts RMS Max 200 Watts at 8 Ohm

Frequency range: 35-24000 Hertz
Average sound pressure 90 db
Passive bass reflex enclosure
Enclosure volume approx. 78 liters
Dimensions: Height 114cm Width 24cm Depth 30cm
Weight: 24 kg

The Diamond Edition are floor-standing speakers with high-quality speaker drivers and a slim, unique design! With their powerful Dayton Audio speakers and a power of 150 Watts RMS per speaker, they offer plenty of power even for higher volumes and are visually a real highlight in any living room or party room! Thanks to the very high-resolution highs, mids, and soft basses, they can be used universally, whether for parties, stereo systems, or as TV speakers. They have a bi-wiring connection terminal with which you can control the two 6.5-inch woofer speakers (lower connection) and the mid and high-frequency range (upper connection) separately. To do this, you only have to remove the two connection bridges at the terminal (Absolutely necessary if you want to connect a multi-channel amplifier or 2 stereo amplifiers!!!)! This allows for perfect tuning between bass and mid-high frequency range.
If you want to operate the speakers normally with a 2-channel stereo amplifier in a 3-way system, it does not matter whether you use the upper or lower connection.

Technical data:

Speakers:
- 2x Dayton Audio Woofer 6.5 inches (170mm)
-Rated power 60 W RMS
-Maximum power 120 W
-Frequency range 35-4000 Hertz
-Sensitivity 90dB
-Impedance 8Ω

-1x Dayton Audio Mid-Woofer 5.25 inches (135mm)
-Frequency response: 60 - 9000Hz
-Nominal impedance: 8 Ohm
-Sensitivity: 89 dB
-Rated power handling: 50 Watts RMS
-Maximum power handling: 100 Watts

-1x Tweeter Dome 3" (72mm)
-Frequency response: 4 kHz - 24 kHz
-Nominal impedance: 8 Ohm
-Sensitivity: 92 dB
-Rated power handling: 60 Watts RMS
-Maximum power handling: 120 Watts

Frequency range: 35-24000 Hertz
The crossover frequency is 500 Hz and 6000 Hz with a 12 dB slope.
